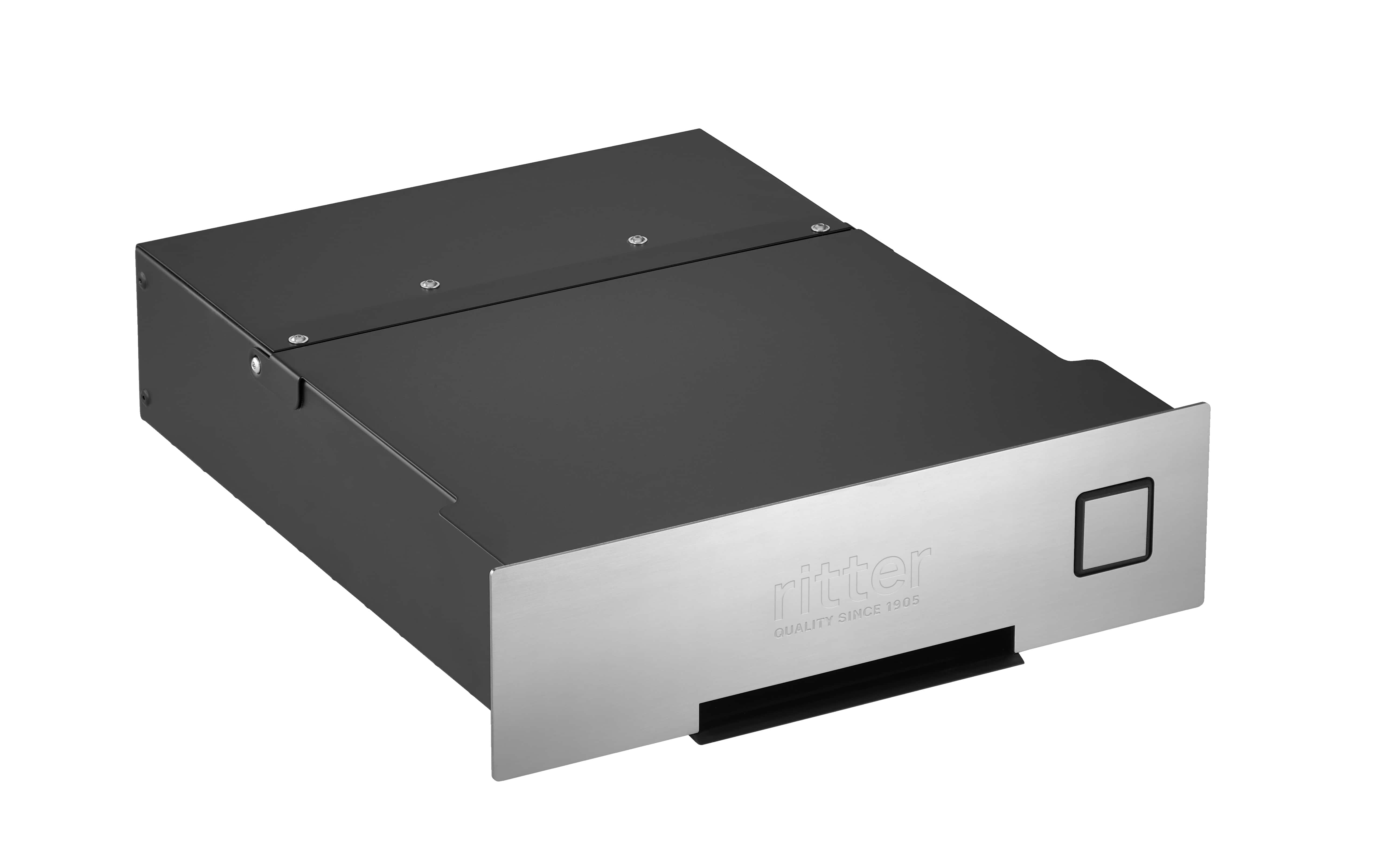

Built-in vacuum cleaner BVC 10
The built-in vacuum cleaner BVC 10 is practically stowed away and yet always ready for use.

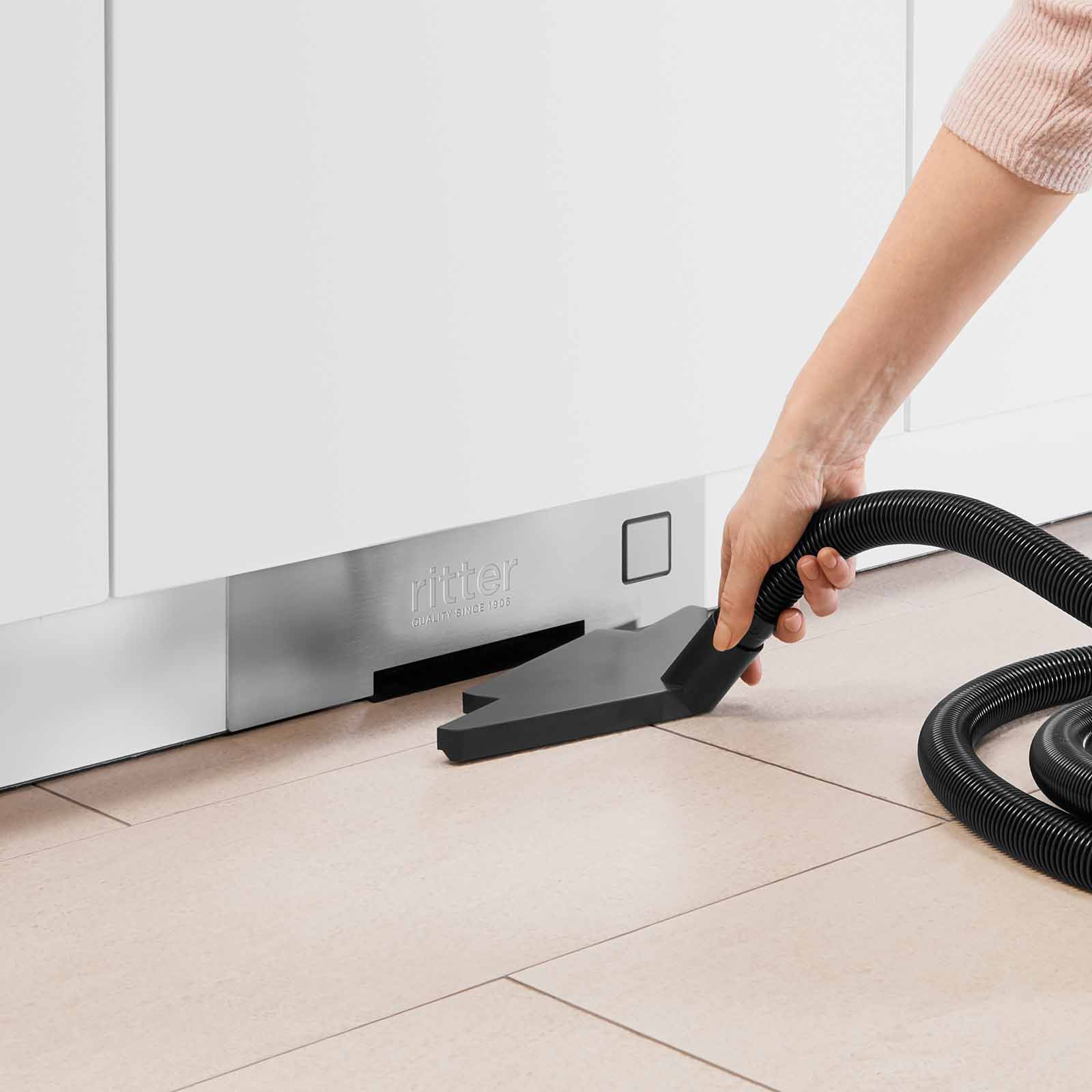

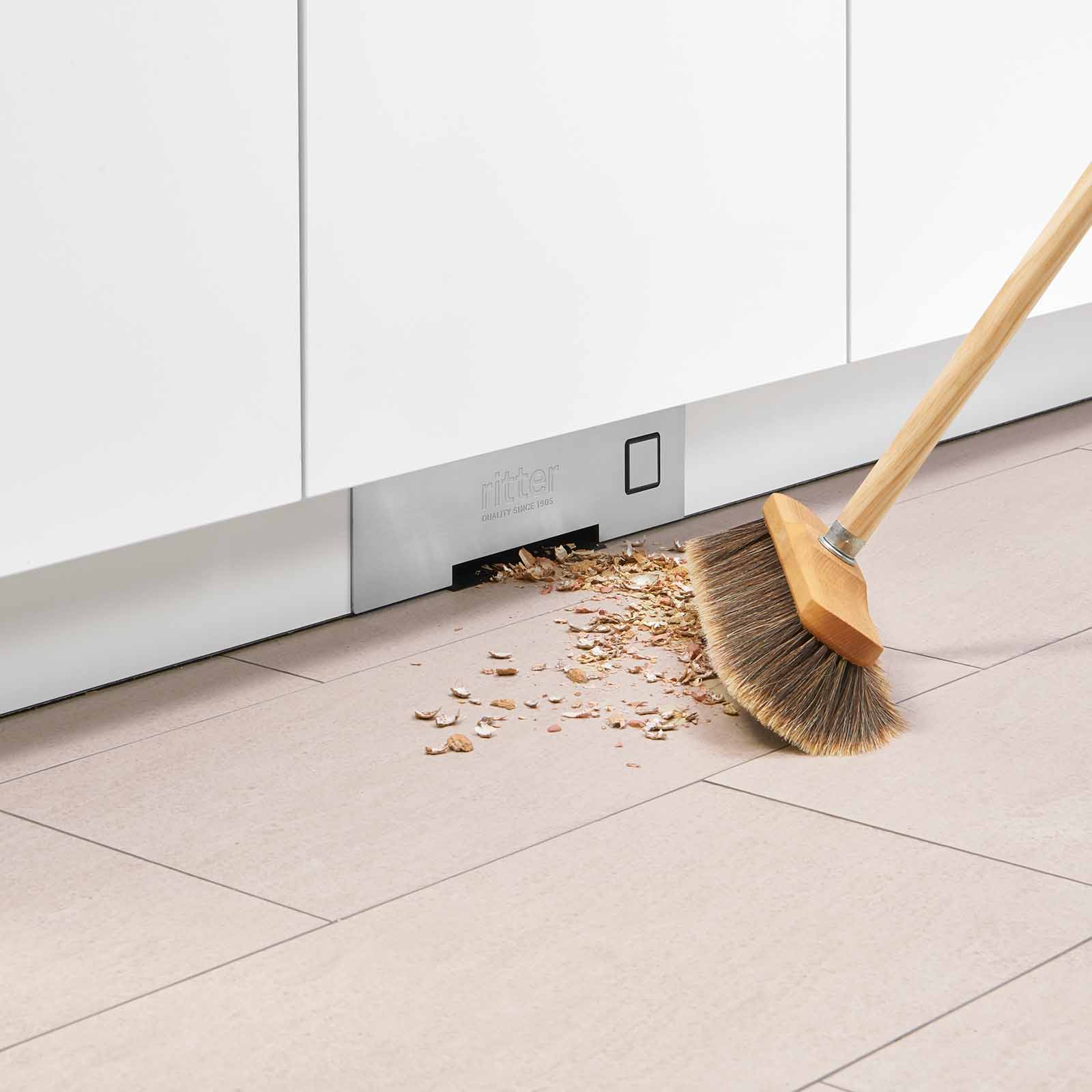

Accumulated dirt is swept in front of the suction slot and vacuumed away in seconds by simply tapping it with your foot.
For the puchase of a built-in system such as this one, it is best to contact a specialist kitchen retailer in your area.
In case you're unsure which model is well suited for installation in your drawer, please refer to our installation guide.
- Robust
- Stable
- Durable
- Corrosion-resistant
- For built-in vacuum cleaner
Product information "Built-in vacuum cleaner BVC 10"

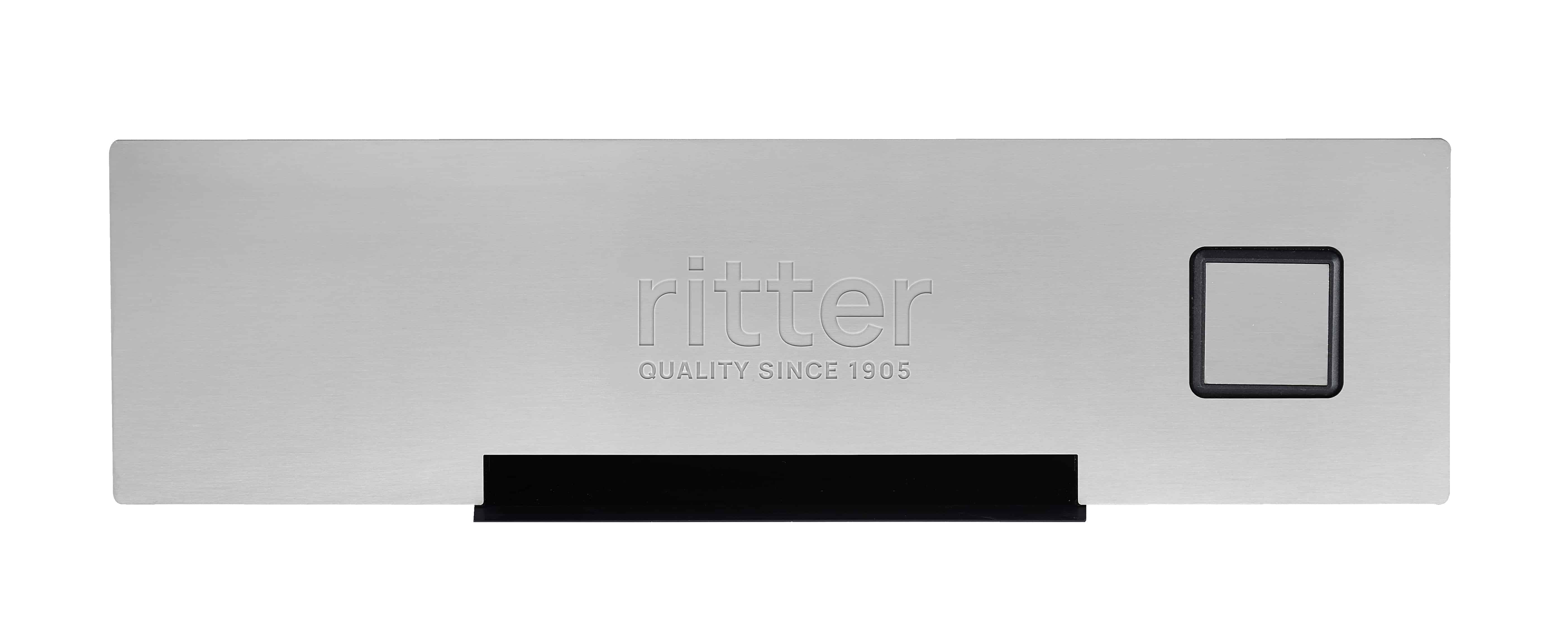

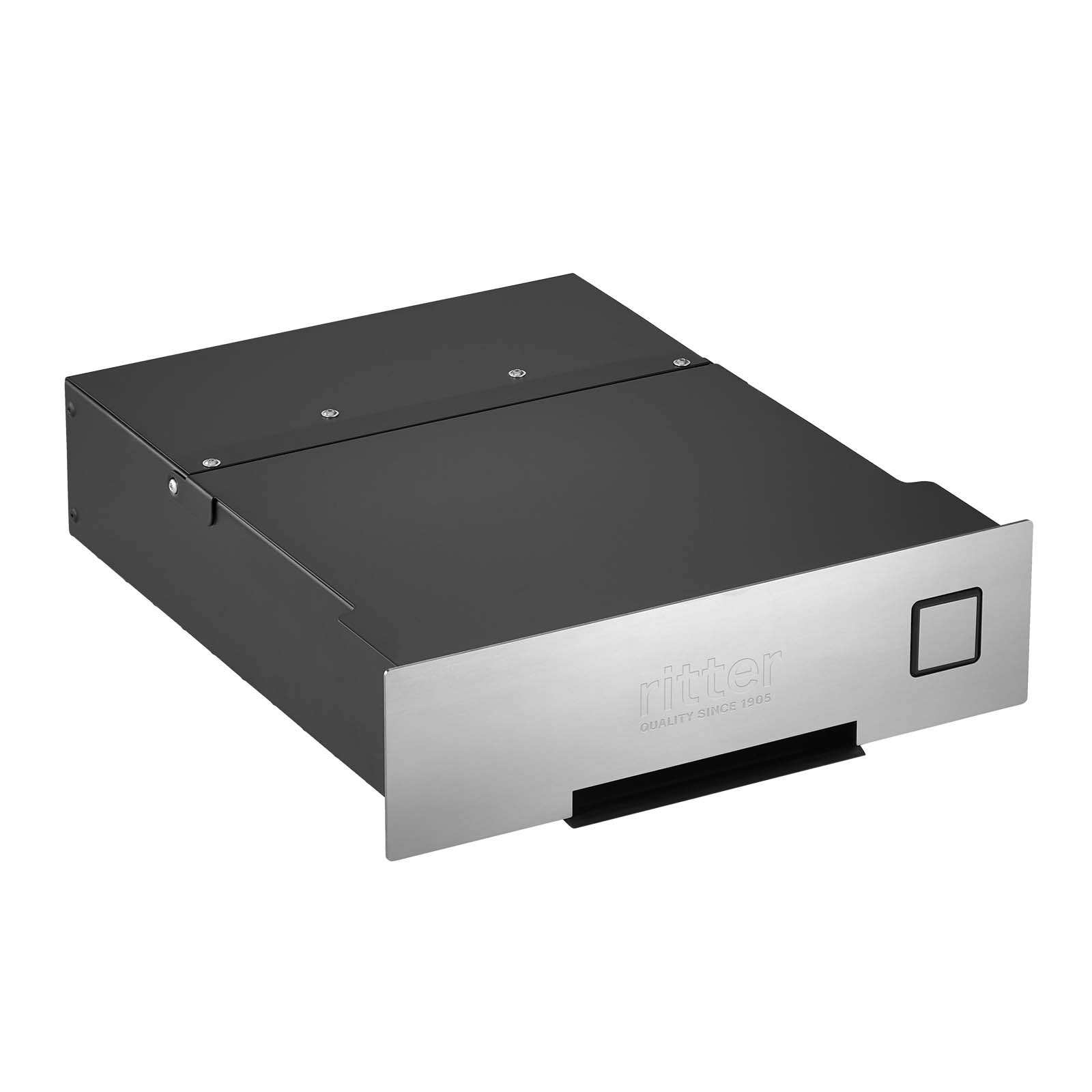

Built-in vacuum cleaner BVC 10
Discover the innovative BVC 10 built-in vacuum cleaner in a stylish stainless steel look, which takes the hassle out of lugging around a conventional vacuum cleaner. Specially designed for installation in almost any furniture plinth from a height of 10 cm, provided there is a cut-out at least 345 mm wide.

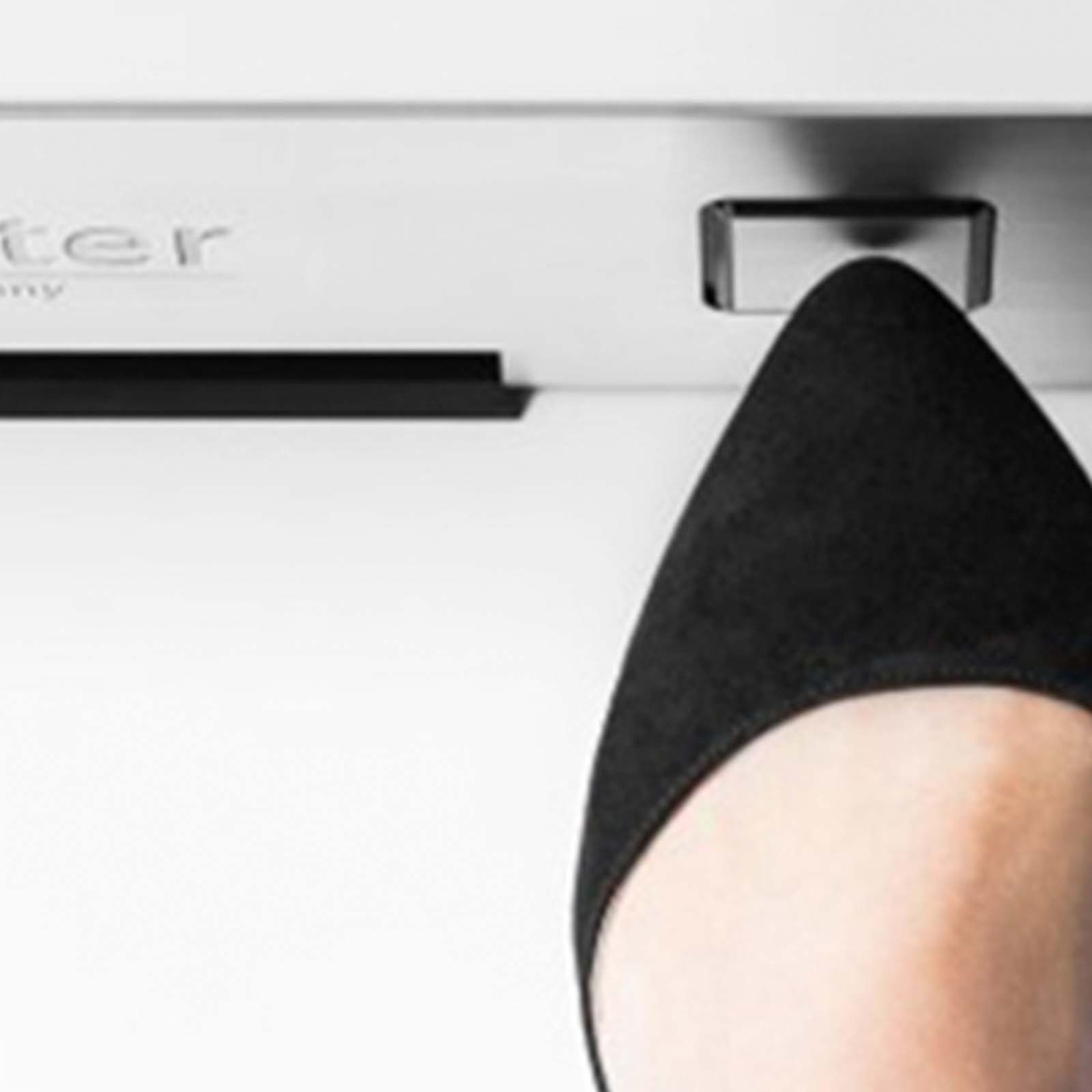

The vacuum cleaner is always ready for use as it is placed directly in the kitchen plinth. A simple tap with the foot or brush is all it takes to activate the appliance. The powerful 600 watt motor sucks up any dirt that is swept in front of the suction slot in a matter of seconds. With an overall height of just 10.5 centimetres, the BVC 10 fits effortlessly under almost any piece of furniture and, thanks to its compact dimensions, can also be easily integrated at a later date - all you need is a standard 230-volt power connection.

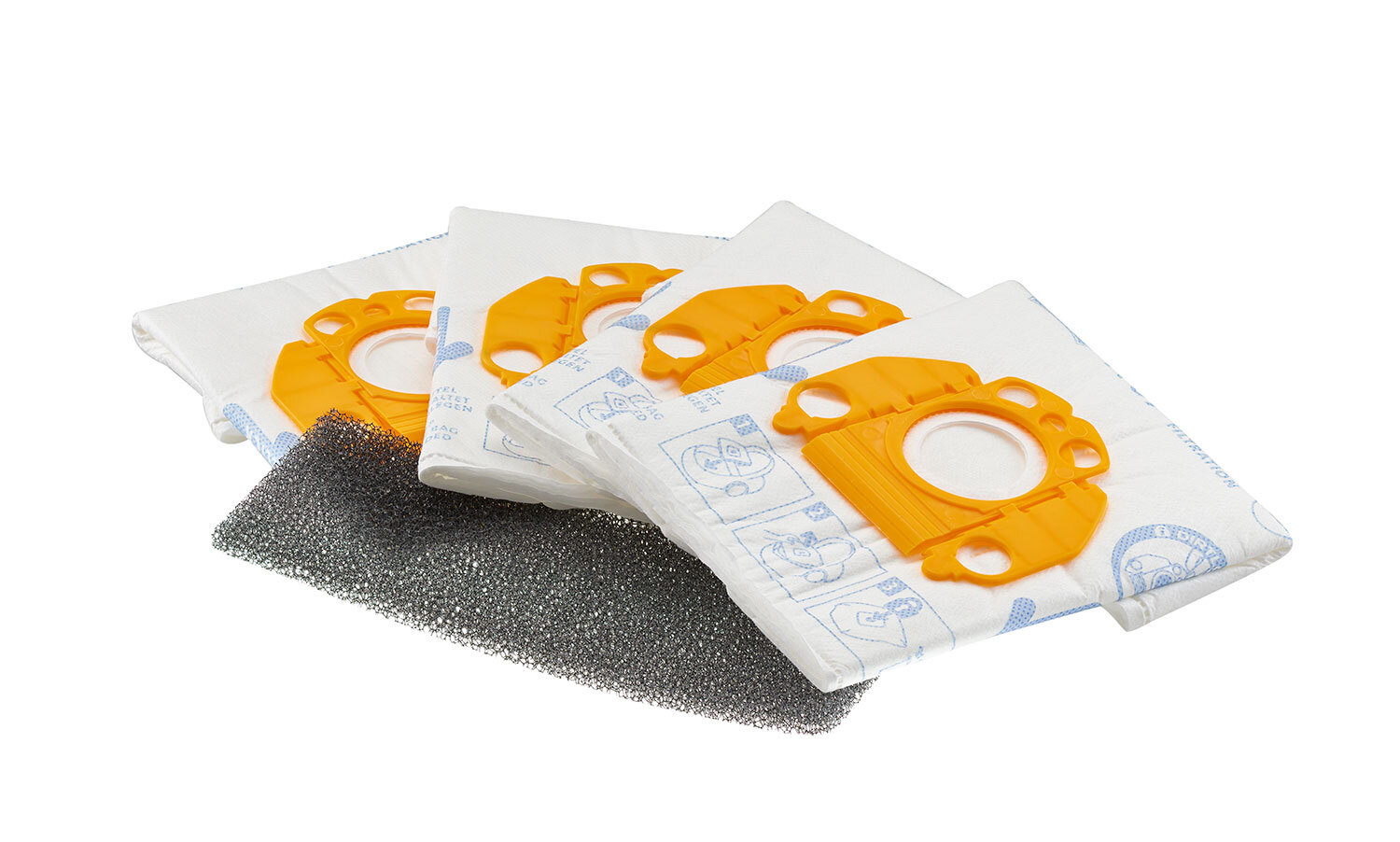

To achieve optimum results, the BVC 10 uses standard Swirl® A07 vacuum cleaner bags, which are equipped with an anti-allergen filter.
To purchase the BVC 10 built-in vacuum cleaner, it is best to contact a specialist kitchen retailer near you.

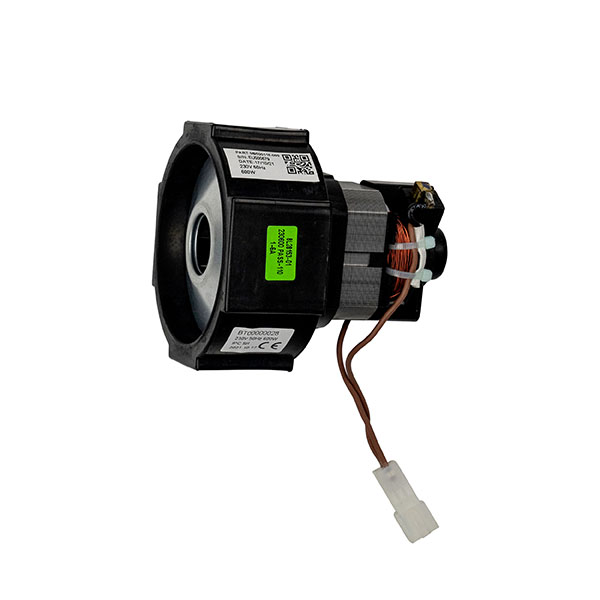

- efficient 600 watt motor

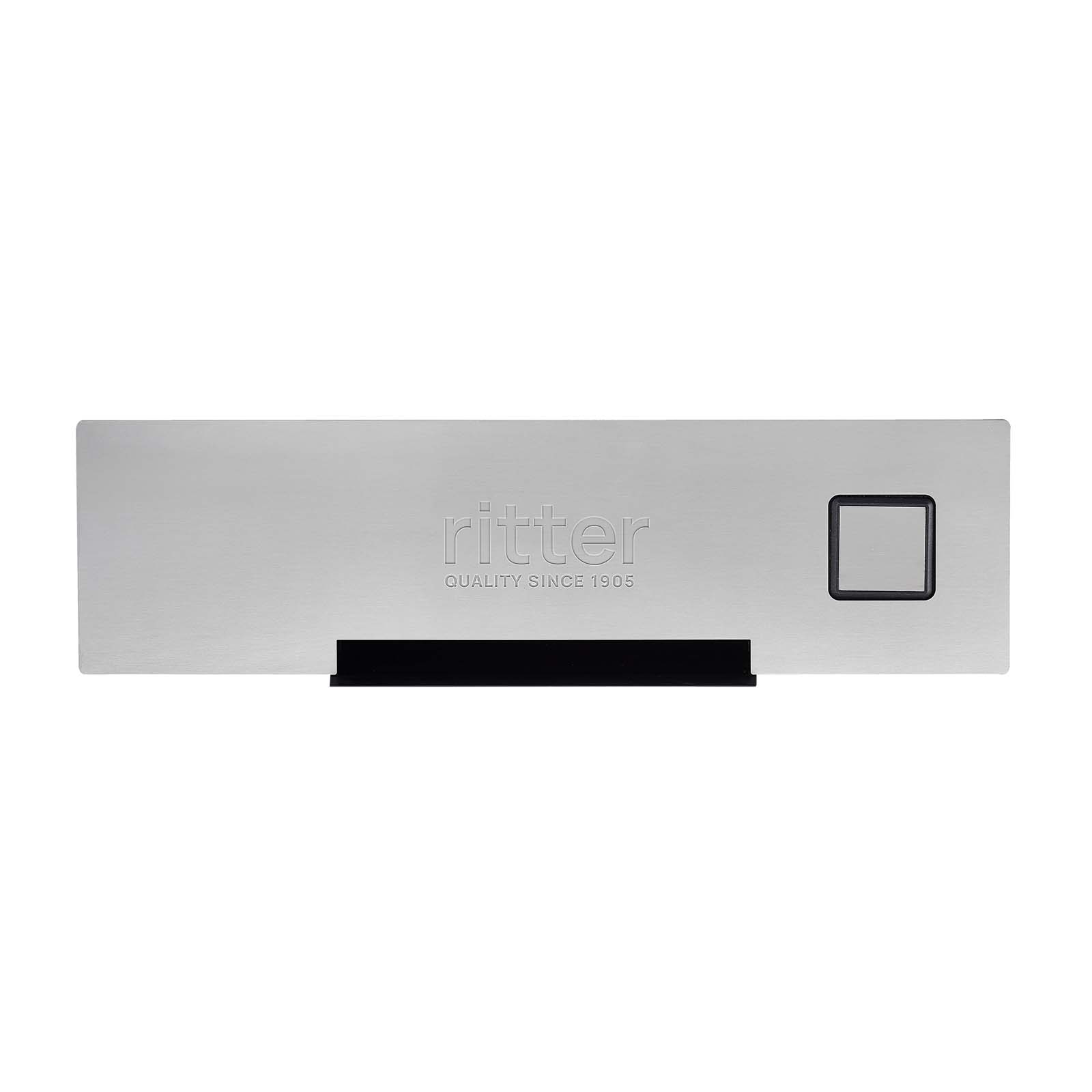

- stainless steel finish
- activated by tapping the button
- automatic switch-off after 60 seconds
- quick cleaning without dragging a heavy conventional vacuum cleaner
- rapid dirt extraction
- extracts dirt up to 12 mm in diameter

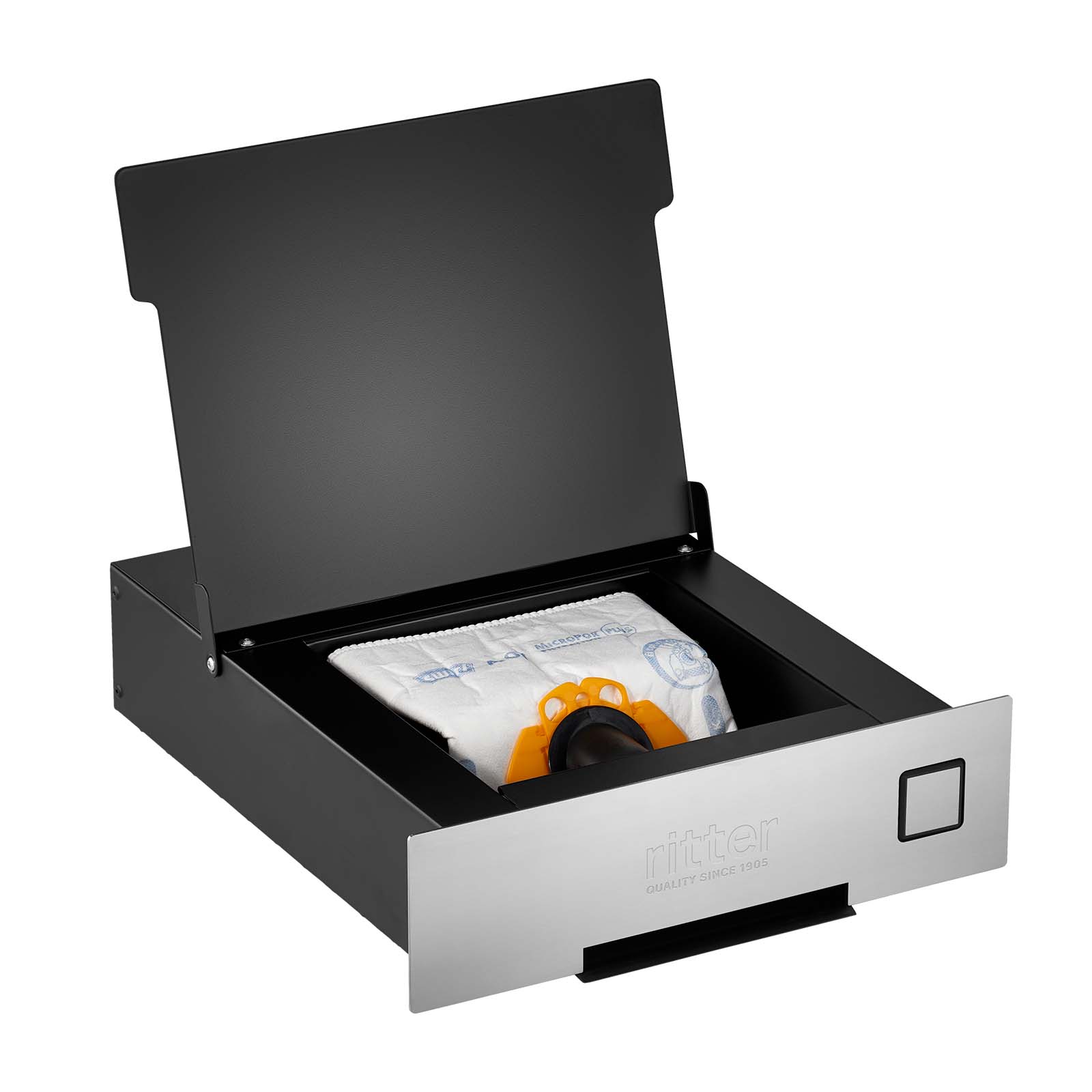

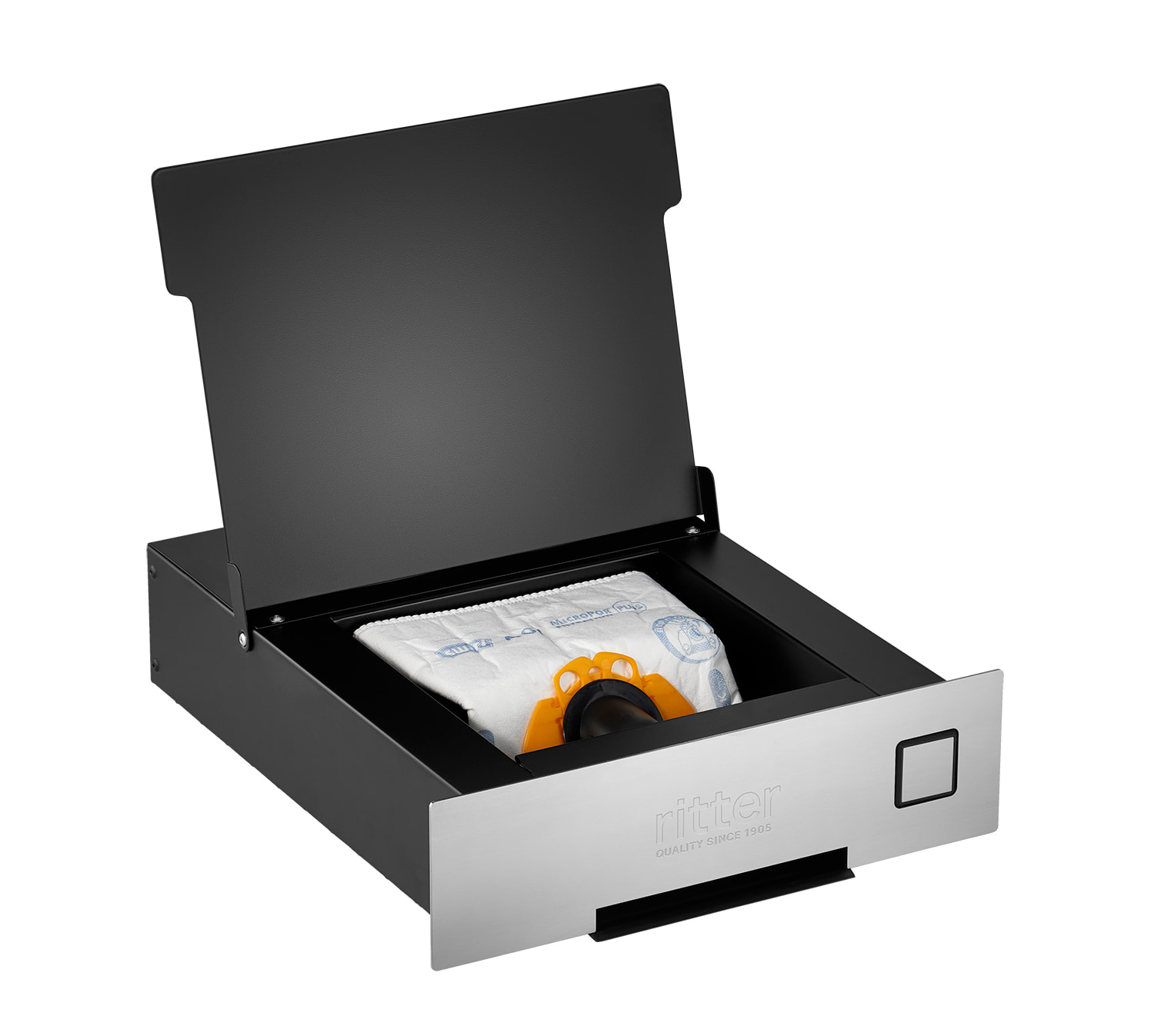

- vacuum cleaner bags easy to change
- vacuum cleaner bag (with anti-allergen filters) included in scope of delivery
- VDE/GS, CE
- 220-240 V, 600 W, 50/60Hz
- weight: 9.2 kg
- Dimensions: height: 105 mm width: 365 mm depth: 425 mm
.png){kind=small}
The built-in devices from ritterwerk are, even if they may not look like it, a more complex matter than just unpacking them, placing them in the counter and using them. There are many things to consider, such as the requirements for the installation, the dimensions and the correct mounting of the device. The sale/distribution of the built-in appliances is therefore exclusively carried out via the kitchen furniture industry or kitchen retailers. The installation of built-in appliances should be carried out by qualified personnel (kitchen manufacturers, carpenters, etc.).
We will show you exactly which built-in food slicer is best suited for the respective planning situation in our installation notes. There, you will also find further information on installation and assembly.
- The built-in vacuum cleaner is to be used for domestic purposes only and must not be used commercially.
- Installation (see page 10 or the QR code on the cover) must always be carried out by qualified personnel. ritterwerk will not be held liable for the consequences of improper or incorrect installation.
- Do not start using the appliance until it has been installed by a professional.
- The built-in vacuum cleaner may only be connected and commissioned in accordance with the specifications on the type label.
- Do not use the appliance without a vacuum cleaner bag. Failure to use a vacuum cleaner bag may damage the motor.

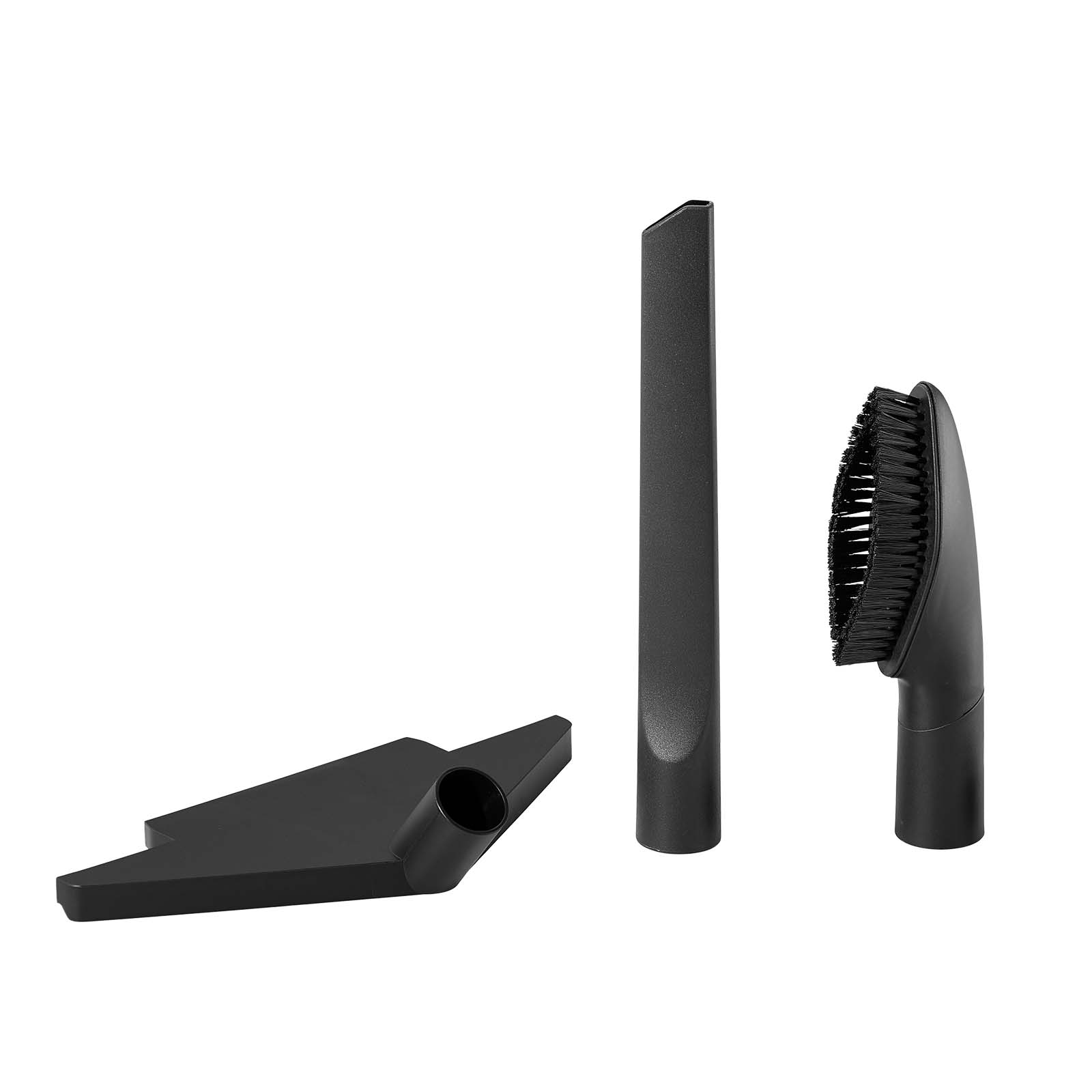

- Use the accessories included in the delivery specification only.
- Use suitable extension cables only.
- Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.
- Do not allow children to play with the appliance.
- This appliance must not be used by children. Keep the appliance out of reach of children.

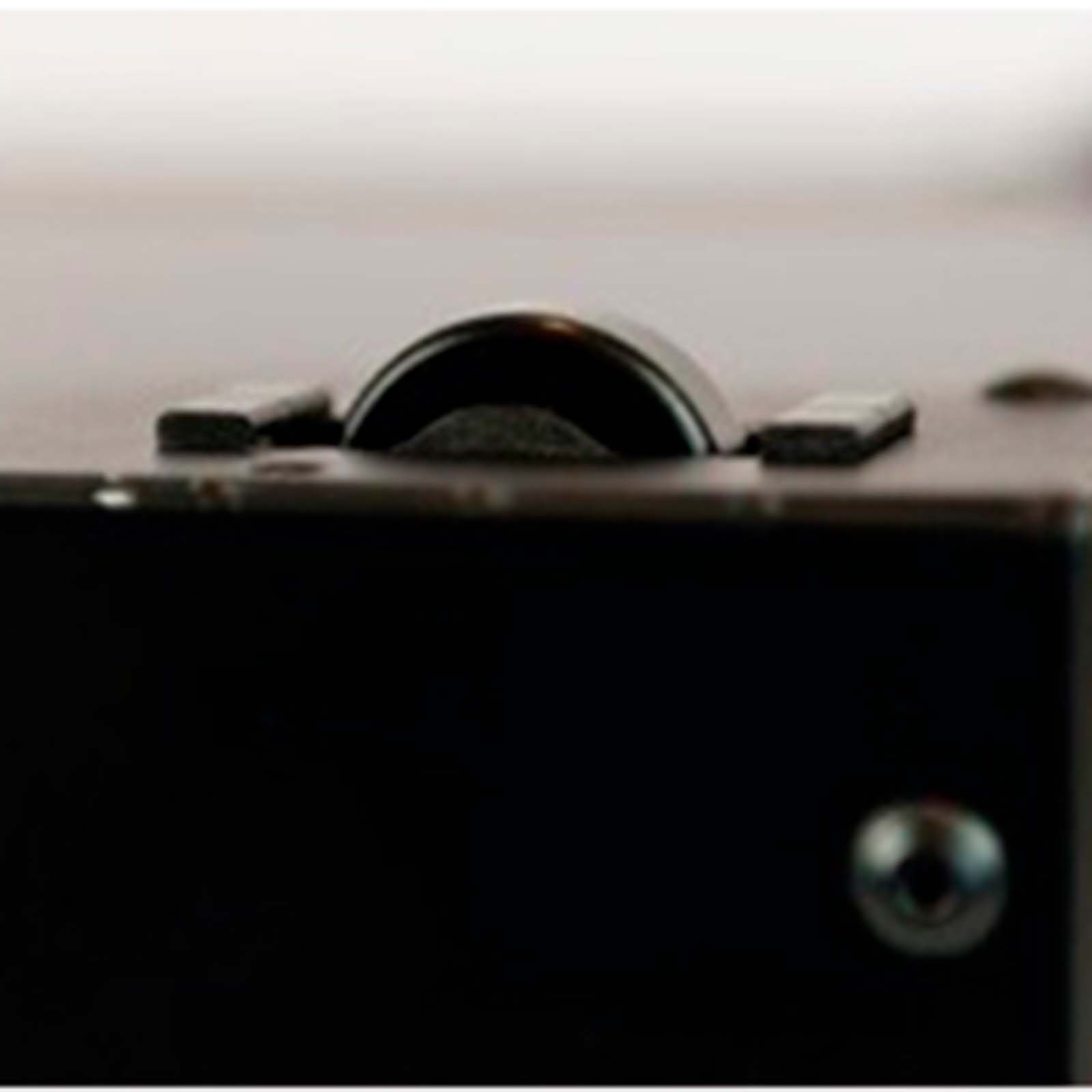

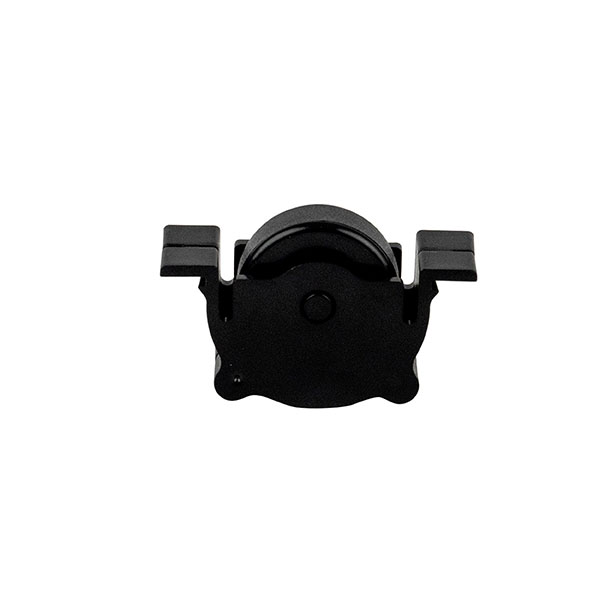

- Make sure that the castors are not damaged by foreign matter or liquids. The space in front of the built-in vacuum cleaner must be clear before pulling out the appliance.
- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.
- In case of abnormal noises, odours, smoke or other malfunctions during use, unplug the power plug or disconnect the main fuse, where possible.
- Never attempt to repair the appliance yourself. If the seal on the motor housing is broken, the warranty becomes irrevocably void.
- Never use the pulled-out appliance as a climbing aid.
- Risk of tripping when the appliance is pulled out.
- Never open the motor compartment while the motor is running.
