Installation details

We strongly recommend having the ritter built-in systems planned and installed by experts. ritterwerk cannot be held responsible for damage or consequences of improper or poor installation. Please also see our warranty conditions.

Before buying a ritter built-in system, please always check if the internal dimensions of the drawer intended for installation are sufficient and if there is a power supply available in (or behind) the cabinet.

You will find the instructions for use and installation of all current ritter built-in systems on the relevant product page of our website. We recommend taking a look at the installation instructions before you buy a built-in system.

The optimum installation

Appliance cannot be fully swivelled out / food to be sliced touches kitchen cabinets

This problem occurs if the appliance is installed inside a kitchen drawer directly next to an angled worktop or a tall kitchen cabinet (high board, refrigerator, etc.). When the models BFS 62 SR, BFS 62 SL and BFS 72 SR are folded out, they swivel to the side by approx. 11 cm. In combination with an angled worktop, unfolding the machine would not be possible.

In case of installation next to a tall kitchen cabinet, the functionality may be restricted as large pieces food could not be fully sliced and would potentially touch the kitchen cabinet.

Incorrect installation

Correct installation

Correct installation

Solution

Contrary to popular belief, the various types of built-in food slicers (BFS 62 SL for slicing from the left or BFS 62 SR for slicing from the right) are not intended as variants for right-handed and left-handed users but offer alternatives for planning of various installation conditions.

If an angled worktop or tall kitchen cabinet (highboard, refrigerator, etc.) is located right next to the kitchen drawer intended for installation of the built-in food slicer, slicing should be guided on the opposite side. If there is sufficient space, e.g. in extra-wide kitchen drawers, the problem can be avoided by positioning the appliance at maximum clearance to the angled worktop or kitchen cabinet.

Company

Your benefits with a built-in
system from ritter

  • Quality product made in Germany
  • High material and processing quality
  • Space-saving stowed in the drawer
  • Quickly ready to hand and ready to function
  • Durable thanks to high quality materials and workmanship
  • Wide range of products
  • Reparability

from ritter - made in Germany.

The optimum installation

The clear height of the drawer is insufficient / when the device is installed, the drawer cannot be closed anymore / the device rubs against the cabinet crossbeam

This problem occurs e.g. with drawers with underfloor guides. The technology for dampening, self-closing of the drawer, etc. is installed below the drawer for design reasons which reduces the clear height of the drawer. Consequeuntly, an installed built-in food slicer, built-in toaster oder built-in hand blender rubs against the crossbeam or the drawer cannot be closed at all.

Most kitchens have a wooden crossbeam with a thickness of approx. 16 mm installed below the worktop. On one hand, the crossbeam ensures the stability of the cabinet (e.g. during transport), on the other hand, it is used to mount the worktop.

Clear height

Solution

If it is not possible to install the device due to insufficient clear height, you can gain approx. 14 mm of clear height by removing the wooden crossbeam and replacing it by a metal crossbeam.

You can order these metal crossbeams as optional accessories from your distributor or from ritter customer service.

Please note that our metal crossbeams are intended for cabinet bases with a corpus wall thickness of 16 mm. For cabinets with a corpus wall thickness of more than 16 mm, the only possibility is to remove the crossbeam completely.

How may we support you?

Get in touch with us quickly and easily. One of our trained and experienced employees will be happy to assist you.

The optimum installation

The carriage / food hits the worktop during slicing

This problem occurs depending on the kitchen manufacturer e.g. with handleless kitchens that have a handle strip, deep drawers or when worktops have a higher thicknesses (> 40 mm). The distance between the bottom of the drawer and the top of the worktop should not exceed 160 mm. Otherwise you may have the problem of hitting the worktop with the food or even with the carriage during slicing.

Distance from drawer base to worktop top edge

Solution

For the BFS 72 SR, BFS 62 SR and BFS 62 SL models.

A version with higher mount is available. It ensures that the device swivels out of the drawer further up when extended and the carriage with the food is positioned higher than the worktop. The higher mount version is marked with an “–H” at the end of the device designation.

If the supplied accessories are not sufficient to bridge the difference in height between the support plate of the built-in food slicer and the worktop, a chipboard may be placed under the device for additional height.

Base plate

Spacer plate

Base plate with spacer plates

Installation situations

ritter offers appropriate solutions for various installation options in the kitchen. With the help of the following overview you can find out how to integrate which built-in food slicer – if necessary with accessories - into your kitchen drawer

usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR
BFS 62 SL
BFS 72 SR
none clear height > 75 mm
clear width > 344 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR
BFS 62 SL
BFS 72 SR
2 base plates clear height > 83 mm
clear width > 344 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
none clear height > 75 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates clear height > 83 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
2 spacer plates
clear height > 84,5 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
4 spacer plates
clear height > 86 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
6 spacer plates
clear height > 87,5 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
8 spacer plates
clear height > 89 mm
clear width > 392 mm

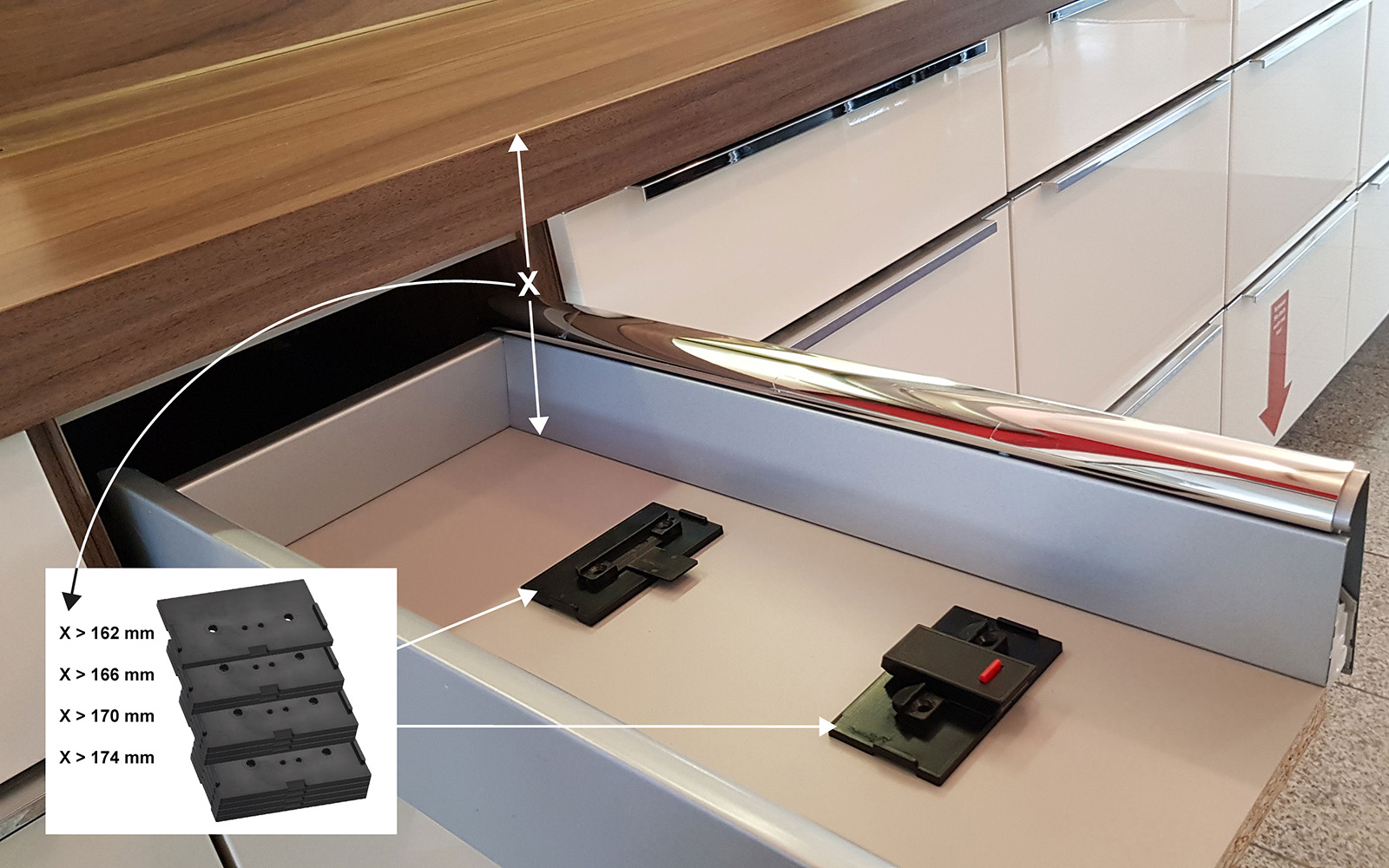

Solution for the BFS 52 S model

The unit can be underlaid with the base plates included in the scope of delivery. Please also observe the operating and installation instructions on the product page of the built-in food slicer BFS 52 S.

Requirements for installation

By supporting the device, the clear height required for installation is also increased. Please refer to the following overview for the exact requirements for installation:

usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR
BFS 62 SL
BFS 72 SR
none clear height > 75 mm
clear width > 344 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR
BFS 62 SL
BFS 72 SR
2 base plates clear height > 83 mm
clear width > 344 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
none clear height > 75 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates clear height > 83 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
2 spacer plates
clear height > 84,5 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
4 spacer plates
clear height > 86 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
6 spacer plates
clear height > 87,5 mm
clear width > 392 mm
usable appliances necessary accessories Drawer interior dimensions
BFS 62 SR-H
BFS 62 SL-H
BFS 72 SR-H
2 base plates
8 spacer plates
clear height > 89 mm
clear width > 392 mm
